PCB depaneling

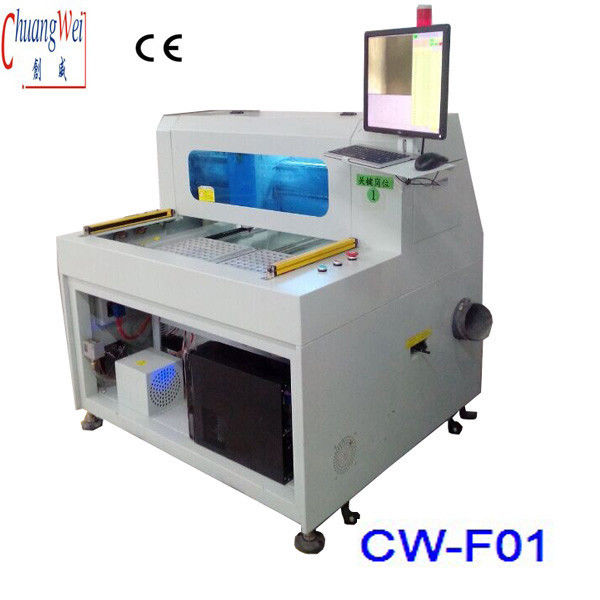

PCB CNC Router Equipment with Morning Star Spindle and Inverter

2-way Sliding Exchanger

This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.

Route Duplication

The user only needs to set two referent points to duplicate a same route in saving programming time.

Routing Bit Sectioning

The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.

Friendly GUI

Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.

Off-Line Edited Program

In terms of AUTOCAD DXF file, screen would show the editing program. Following the moves of mouse easily to result a cutting pattern which reduces cutting edited time. terms of AUTOCAD DXF file, screen would show the editing program. Following the moves of mouse easily to result a cutting pattern which reduces cutting edited time.

CCD Camera

CCD image could check and simulate the path of routing the reduce unnecessary mistake before cutting.

More information about PCB Router Depaneling Machine,Welcome to contact us:
